Plot accumulators and their timing relations

Draw a schematic view of the model with time on the x-axis and evidence on the y-axis. Each accumulator is shown as a simple trajectory, and timing or blocking relations are overlaid so you can inspect the qualitative structure of the model before fitting.

Usage

plot_accumulators(
  model,
  xlim = NULL,
  ylim = c(0, 1),
  line_length = 1,
  angle_dodge = 10,
  accumulator_order = NULL,
  curve_strength = 0.18,
  line_col = "gray20",
  line_lwd = 3,
  axis_lwd = 3,
  link_lwd = 2.2,
  blocker_lwd = 2.6,
  show_labels = TRUE,
  main = "Accumulator Schematic",
  xlab = "Time",
  ylab = "Evidence",
  ...
)

Arguments

model

A race model (`race_spec`, a finalized model, or `model_tables`).

xlim

Optional x-axis limits. If `NULL`, they are chosen from the model.

ylim

Y-axis limits.

line_length

Length of each accumulator trajectory in plot units.

angle_dodge

Target angular spacing in degrees between neighbouring accumulators. Angles are centered at 45 degrees and constrained to the interval [10, 80]. If there are too many accumulators sharing the same onset, spacing is reduced uniformly within that onset group.

accumulator_order

Optional character vector of accumulator labels, ordered from top-to-bottom. This only affects accumulators sharing the same onset.

curve_strength

Curvature applied to relationship arcs.

line_col

Color for accumulator trajectories.

line_lwd

Line width for accumulator trajectories.

axis_lwd

Line width for x/y axis arrows.

link_lwd

Reserved for reciprocal relationship arrows (currently disabled).

blocker_lwd

Line width for blocker arrows.

show_labels

If `TRUE`, add accumulator labels near the line endpoints.

main

Main title.

xlab

X-axis label.

ylab

Y-axis label.

...

Additional arguments passed to `graphics::plot`.

Value

Invisibly returns a list with plotting coordinates and inferred structural links.

Examples

spec <- race_spec() |>
  add_accumulator("go", "lognormal") |>
  add_accumulator("stop", "lognormal", onset = 0.15) |>
  add_pool("P", c("go", "stop")) |>
  add_outcome("R", "P") |>
  finalize_model()

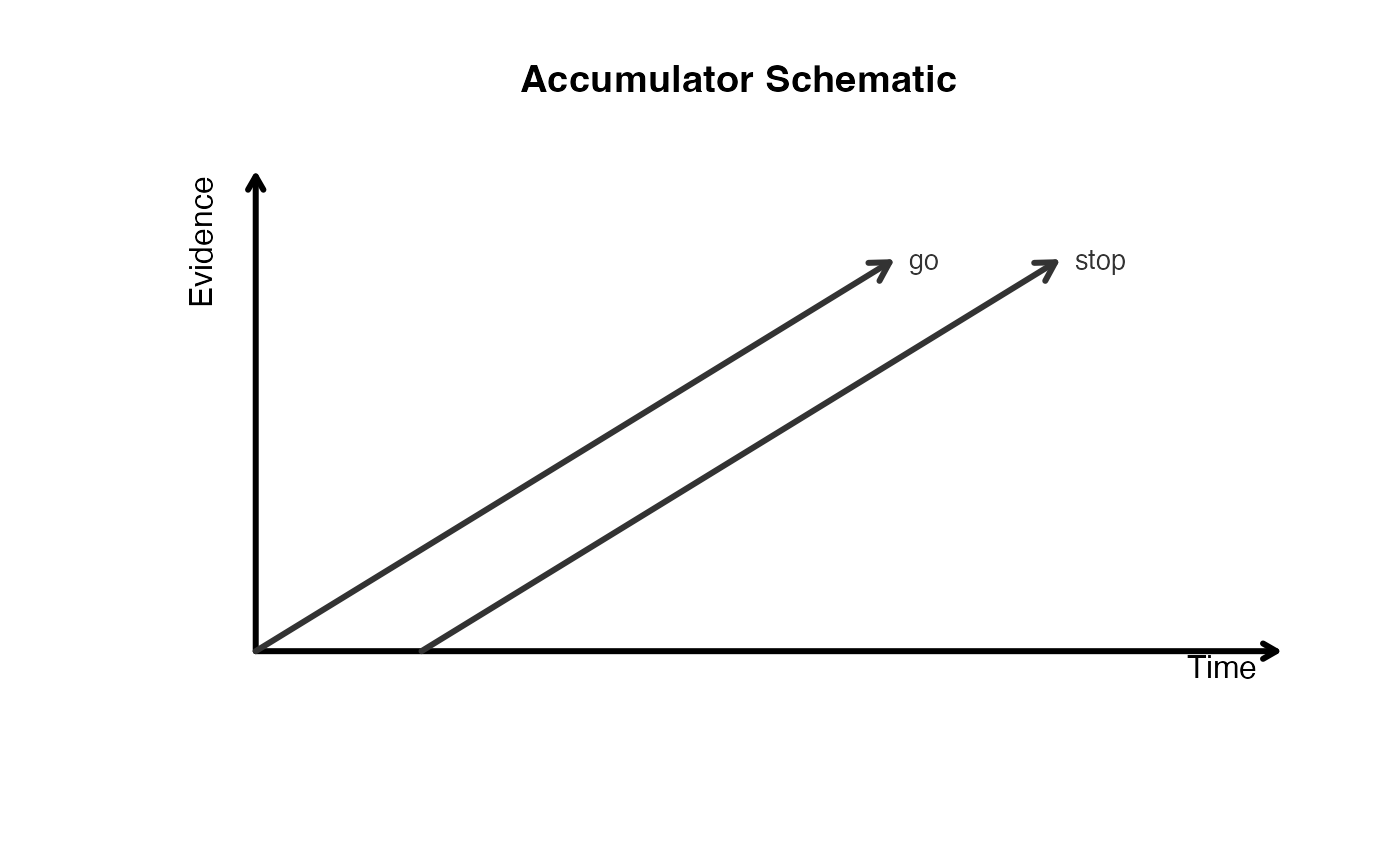

plot_accumulators(spec)
